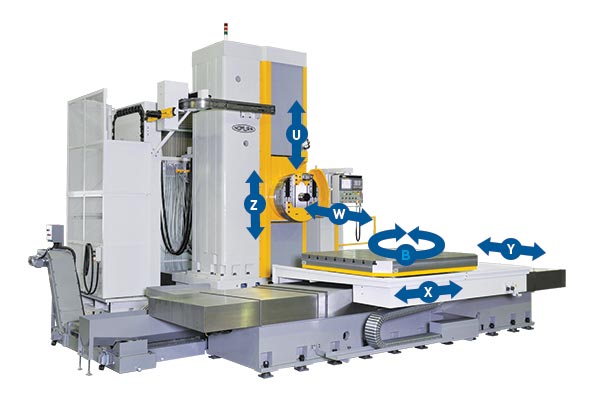

Nomura Horizontal Boring and Milling Machines
Main Specifications
| Model | FB-70TR3 | FB-100PR5 |
|---|---|---|
| Face Plate Diameter | 27.6" | 39.4" |
| Face Plate Slide Travel | 7.9" | 11.8" |
| Max. Facing Diameter | 39.4" | 59" |
| Face Plate Speed | 4~350 rpm | 4~280 rpm |
| Spindle Diameter | 4.3" | 4.3" |
| Spindle Travel | 19.7" | 19.7" |
| Spindle Speeds | 15~1,500 rpm | 15~1,225 rpm |
| Table Cross Traverse | 78.7" | 118" |
| Headstrock Vertical Travel | 51.2" | 78.7" |
| Table/Column Longitudinal Travel | 55.1" | 47.2" |
| Table Size | 55" x 63" | 71" x 79" |
| Main Motor | VAC 20/25HP | VAC 20/25HP |
| Controlled Axis | 6 | 6 |
