Shimada-Kitako VT4-350 Productive CNC 4 Spindle Vertical Lathe

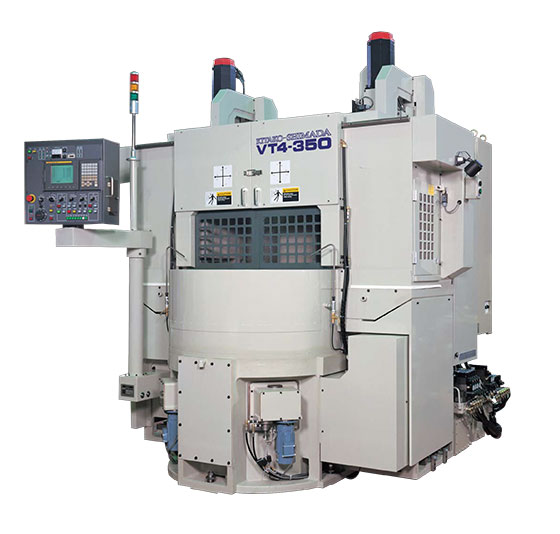

VT4-350 Productive CNC 4 Spindle Vertical Lathe

• Part loading/unloading time is ZERO.
• As a FM cell, the machine facilitates automization of a manufacturing line.
• Vertical design enables handling of heavy workpieces.
• Loading spindle is covered to protect from coolant and chips.
• Spindle offset function compensates for earrors between spindles in the microns.
• Spindle speeds can be independently controlled for each spindle.

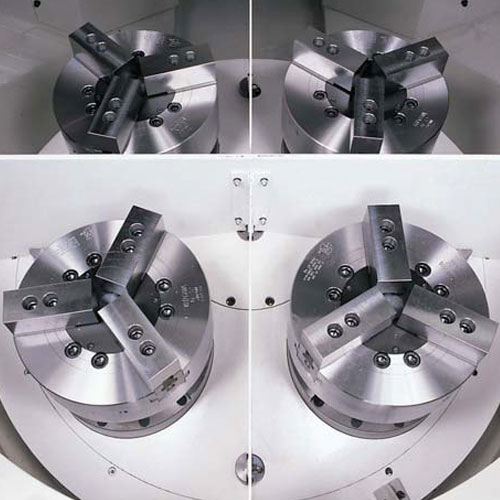

4 Spindle Unit, 2 Machine While 2 Are Loaded

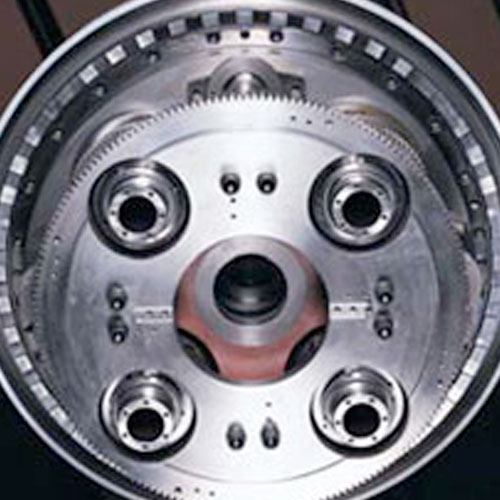

High Accuracy Indexing

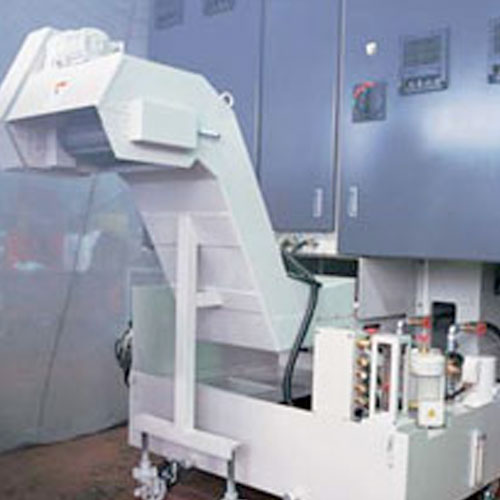

Chip Conveyor

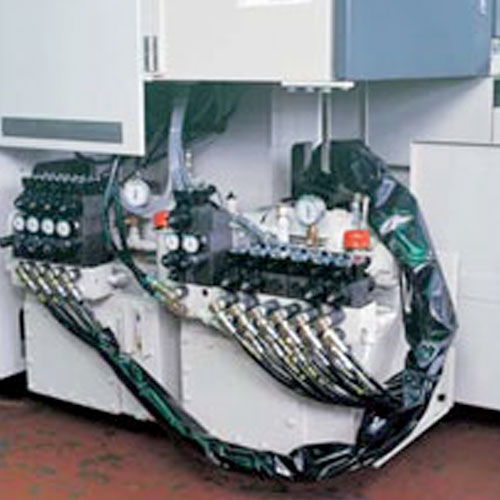

Hydraulic Unit

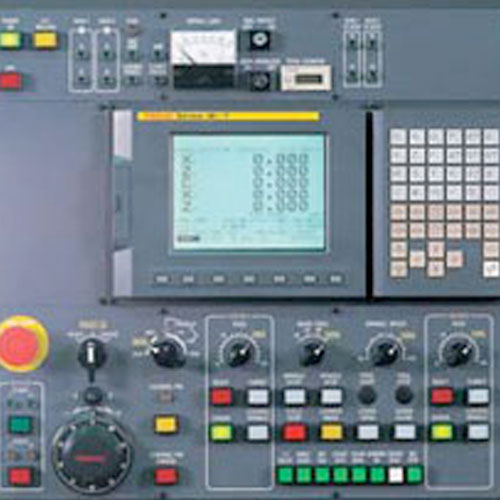

Centralized Operation Panel

Main Specifications

Model VT4-350
Max. Turning Diameter 13.8"
Max. Turning Length 7.9"
X-Axis Stroke 12"
Z-Axis Stroke 18"
X-Axis Rapid Feed 788"/min.
Z-Axis Rapid Feed 788"/min.
Spindle Speed Range 3200 rpm
Number of Spindles 4
Spindle Nose ASA A2-8
Carrier Index Time 180° / 6.0sec. 90°/ 5.0sec.
Turret Tool Capacity 8 (OD:4, ID:4)
