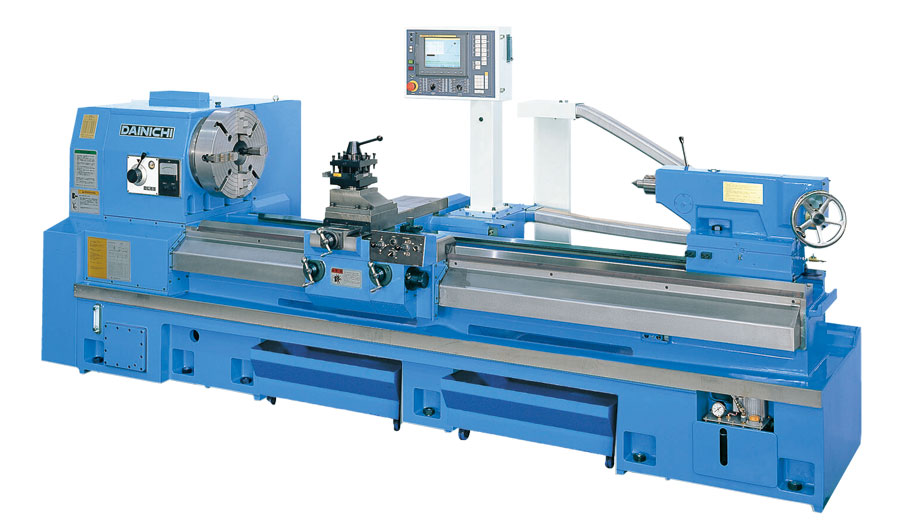

Dainichi CNC Flatbed Lathes (Guidance & Manual)
Dainichi’s enhanced CNC with Guidance Function can machine a vast diversity of short-run workpieces without complicated, and time-consuming, programming requirements.
Features

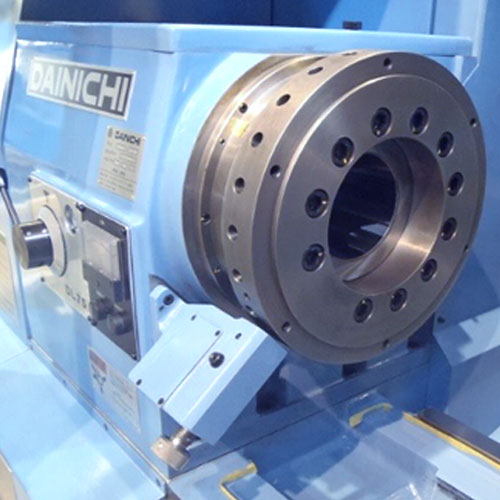

Big Hollow Spindle (Option)

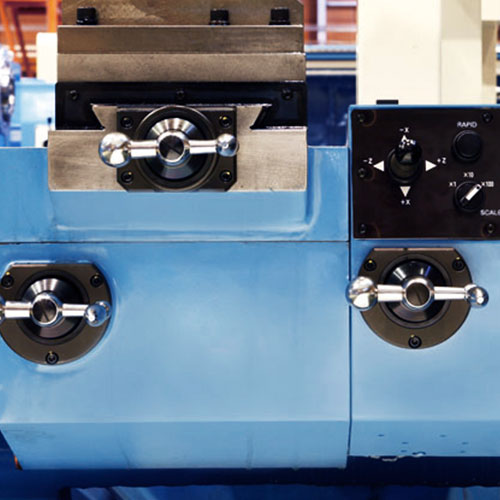

Manual Handles

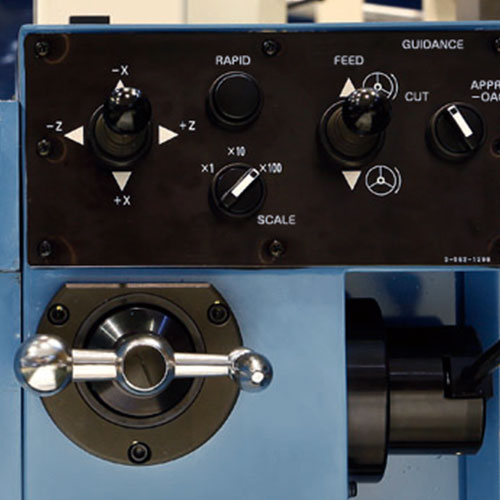

Guidance Operations

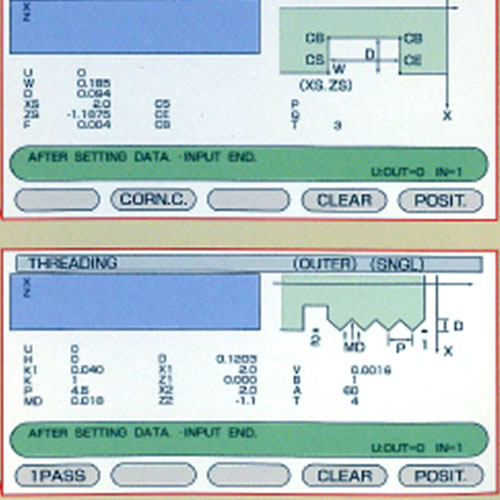

Guidance Programming

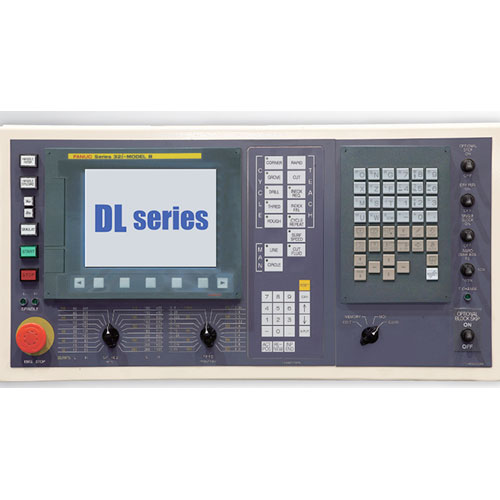

CNC with Guidance Function
Main Specifications
| Model | DL530 | DL65/75 | DL65/75 Longer Beds | DL95 | DL120 | DLII 142/152 | DL 132/152 | TL 132/152 | W 16L |
|---|---|---|---|---|---|---|---|---|---|
| Swing over Bed | 21" | 25"/29" | 26"/29" | 39" | 47" | 56"/60" | 52"/60" | 52"/60" | 55" - 87" |
| Swing over Carriage | 12" | 15"/19" | 15"/19" | 25" | 31" | 39"/43" | 35"/43" | 35"/43" | 35" - 59" |
| Distance between Centers | 39" - 59" | 39" - 157" | 196" - 314" | 59" - 393" | 59" - 393" | 59" - 393" | 59" - 590" | 59" - 590" | 118" - 393" |
| Max. Supporting Capacity | 2,200 lbs | 3,300 lbs | 3,300 lbs | 11,000 lbs | 16,500 lbs | 17,600 lbs | 16,500 lbs | 22,000 lbs | 35,200 lbs |
| Main Drive Motor | 10/12 hp | 10/15 hp | 10/15 hp | 20/25 hp | 30/35 hp | 30/35 hp | 40/50 hp | 50/60 hp | 60/74 hp |
| Spindle Speed | 17~1,700 rpm | 12~1,120 rpm | 12~1,120 rpm | 12~900 rpm | 10~630 rpm | 7~500 rpm | 7~500 rpm | 1~500 rpm | 1~250 rpm |
