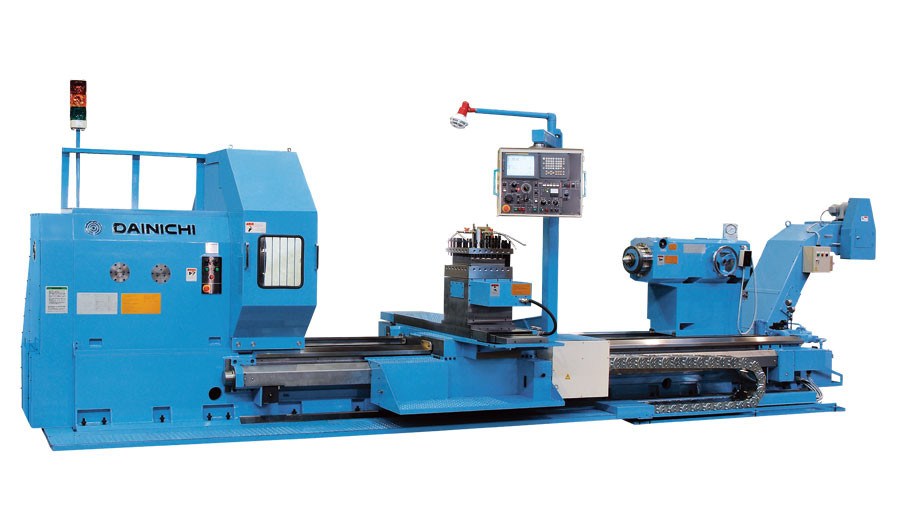

Dainichi CNC Lathes

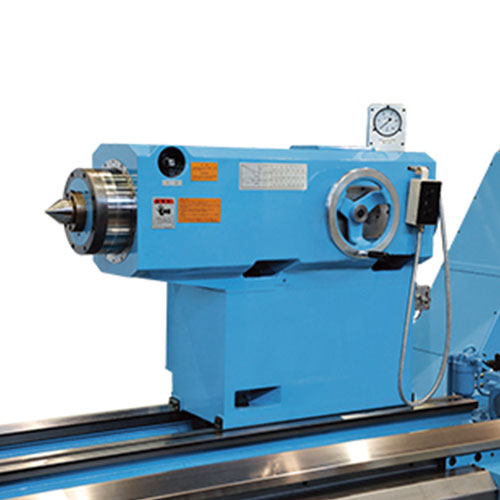

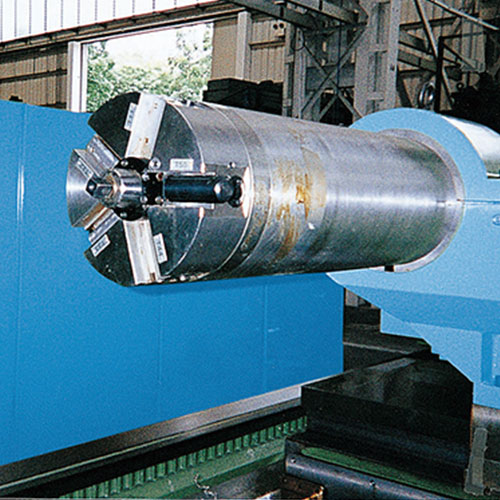

Our traditional rock-solid casting, and proven manufacturing methods, are combined with cutting-edge CNC technology to ensure that Dainichi lathes unremittingly excel across diverse industries and turning applications. The beefy, large diameter bulit-in tailstock spindle solidly holds large parts during heavy cutting. The centralized pendant-mounted control panel is user-friendly, well laid-out, easily learned, and efficiently operated.
Main Specifications
| Model | MG65/75 | M85 | M112/132/152 | M110R/130R/150R | W16-W50 |
|---|---|---|---|---|---|
| Swing over Bed | 26"/30" | 35" | 44"/52"/60" | 38"/45"/53" | 55" - 98" |
| Swing over Carriage | 14"/18" | 20" | 27"/35"/43" | 33"/40"/43" | 35" - 83" |
| Distance between Centers | 39" - 157" | 39" - 196" | 39" - 787" | 39" - 708" | 118" - 393" |
| Max. Supporting Capacity | 3,520 lbs | 6,600 lbs | 22,000 lbs | 22,000 lbs | 35,200 - 110,000 lbs |
| Main Drive Motor | 15/20 hp | 40/50 hp | 50/60 hp | 50/60 hp | 60 - 135 hp |
| Spindle Speed | 3~1,800 rpm | 10~1,800 rpm | 1~500 rpm | 2~400 rpm | 1~250 rpm |
