Dainichi CNC Roll Turning Lathes

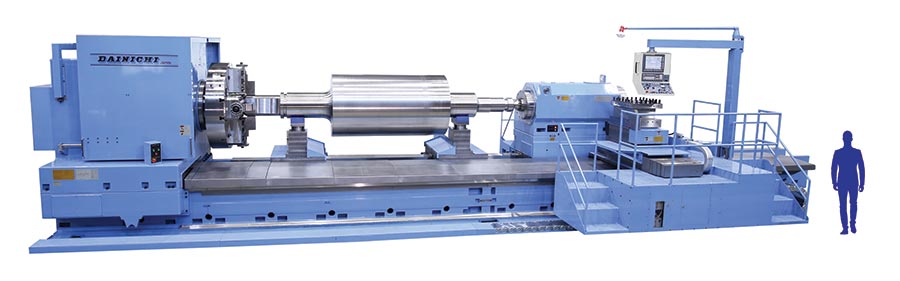

Dainichi DRNC Series Roll Lathe

Dainichi’s DRNC Series Roll Lathes have set the standards and raised the bar; strong enough to handle the largest rolls, with the rigidity to accurately machine the longest shaft. Equipped with Dainichi’s original and revolutionary tooling system, the DRNC 80/100 models significantly outperform conventional lathes using formed tools. Each of the Dainichi DRNC Series models provides a proven and total solution for roll turning.


Features

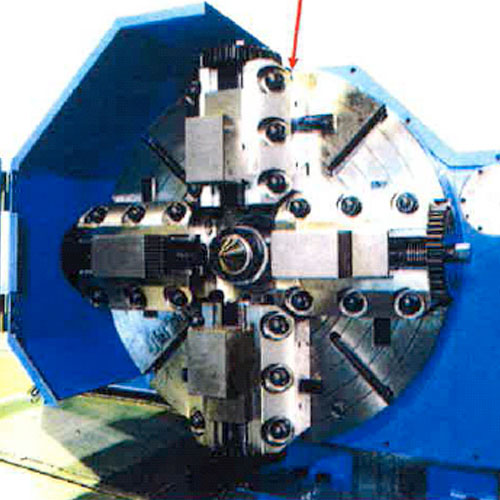

Special Chuck

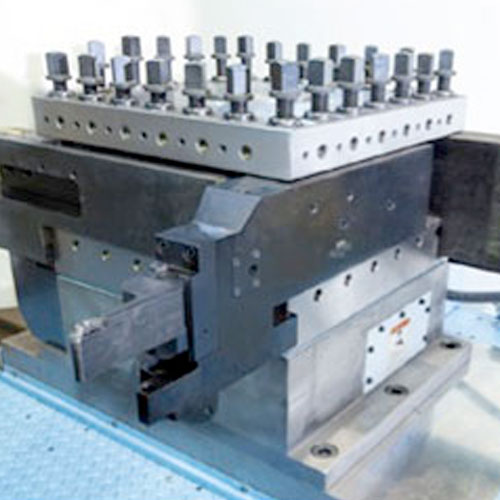

Special Turret

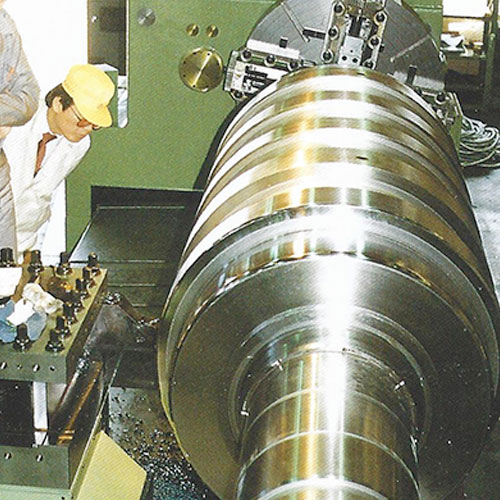

DR80 / Roll Manufacturing

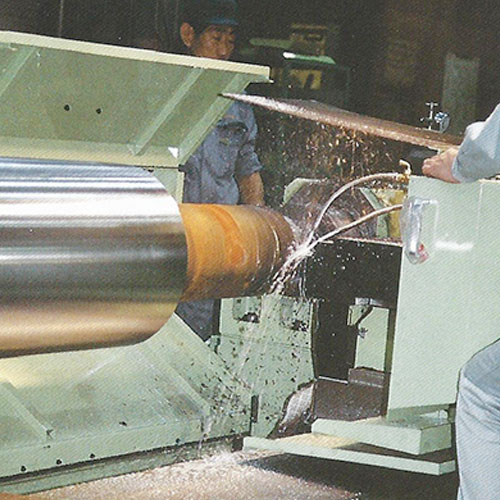

DR80 / Wet Turning Technology

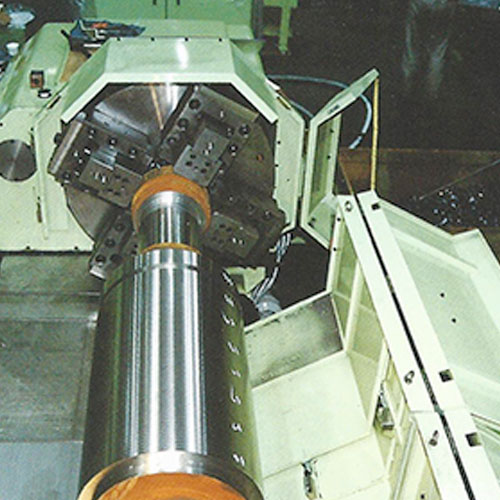

DR100 / Deep Rolling Pass Process

Main Specifications

Model DR80 DR100 Larger Table Available Upon Request
Swing over Bed 35" 47"
Swing over Carriage 32" 39"
Distance between Centers 79" - 197" 79" - 197"
Max. Supporting Capacity 22,000 lbs 35,200 - 110,000 lbs
Main Drive Motor 50/60 hp 60/74 hp
Spindle Speed 1~224 rpm 1~280 rpm
